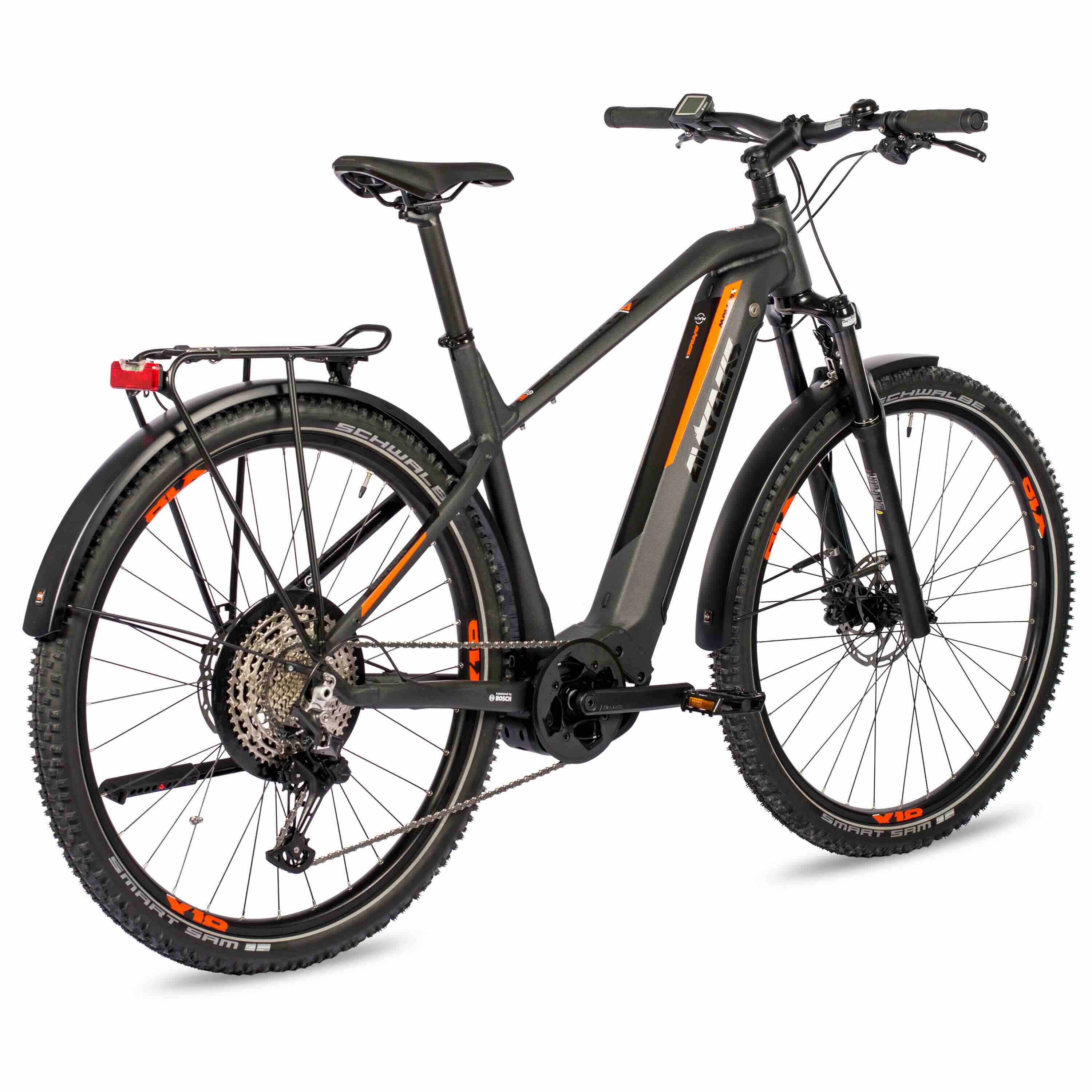

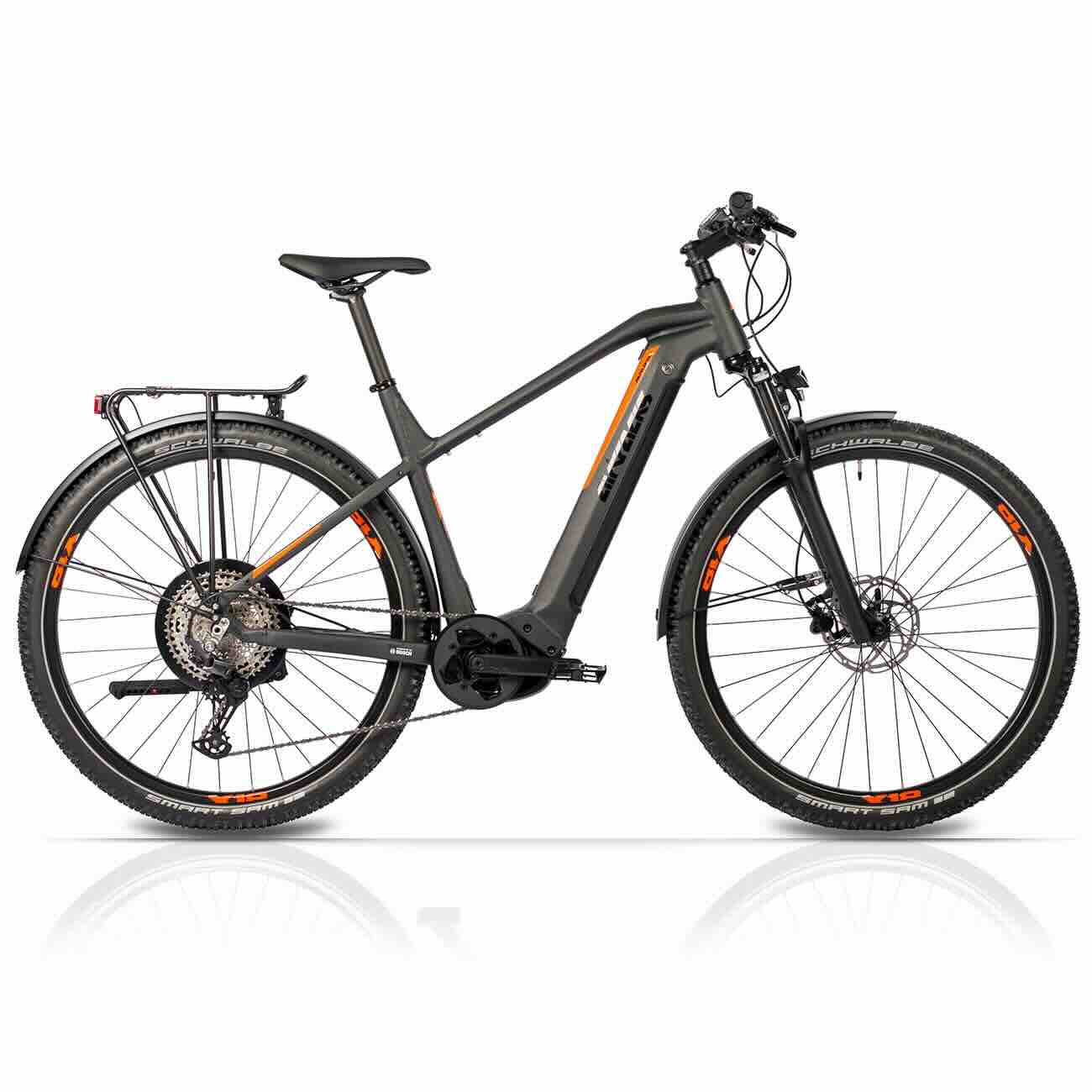

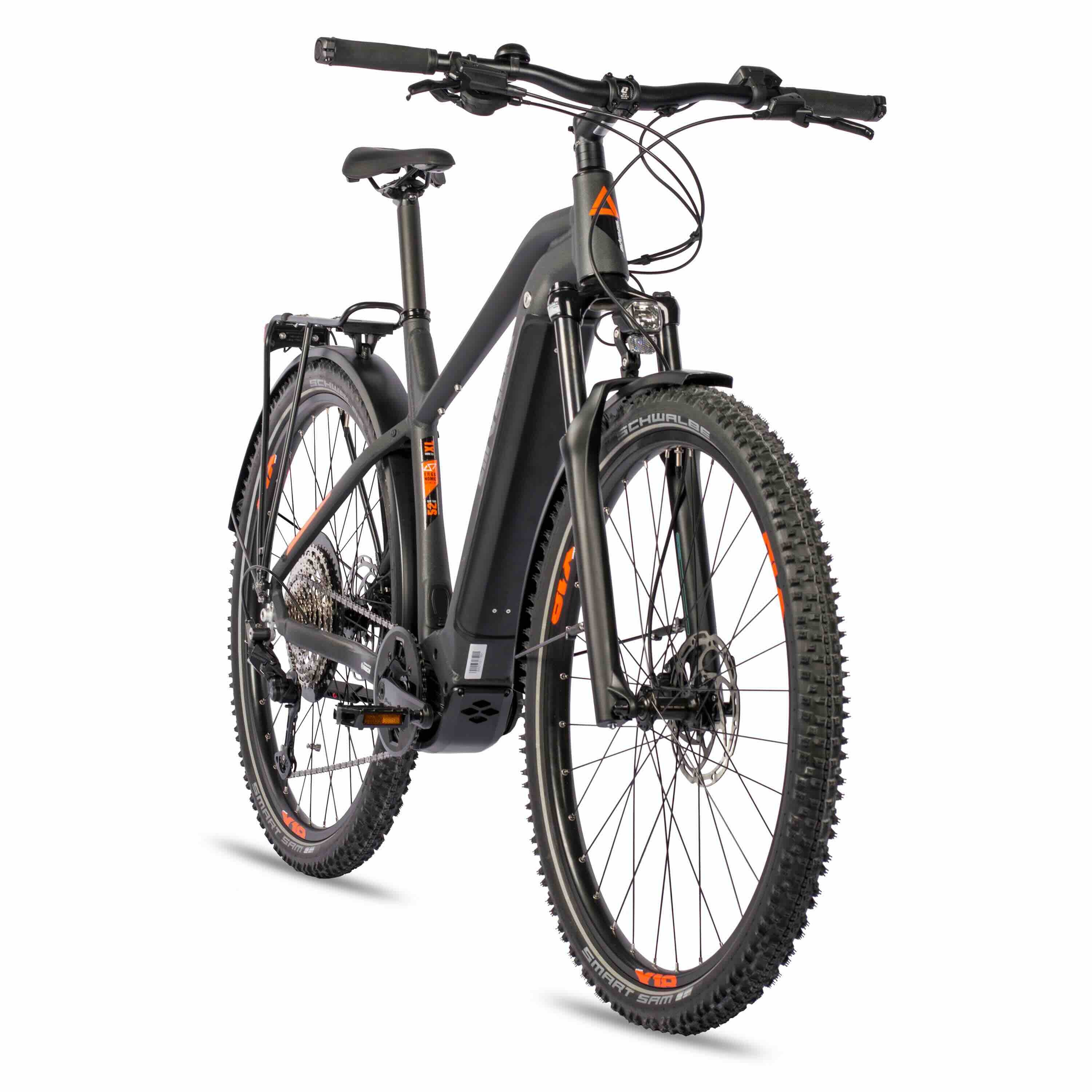

29 inch E-MTB SUV Maverix Bosch Performance Line CX Gen4 500WH Boost 85nm 12S Shimano Deore RD-6100

29-inch men’s E-BIKE SUV MTB MAVERIX BOSCH Performance Line CX 500Wh BOOST 85Nm 12-speed SHIMANO DEORE RD-6100

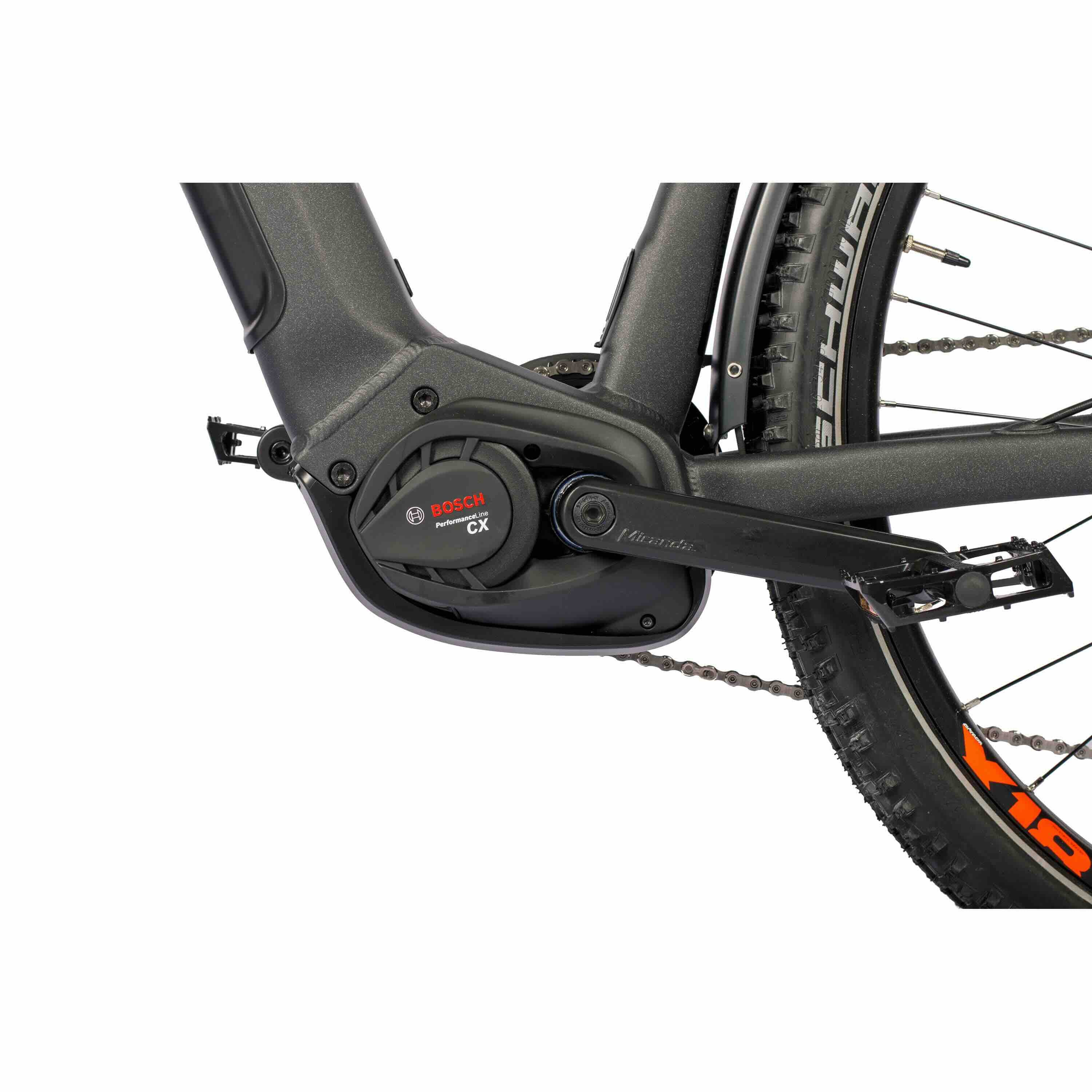

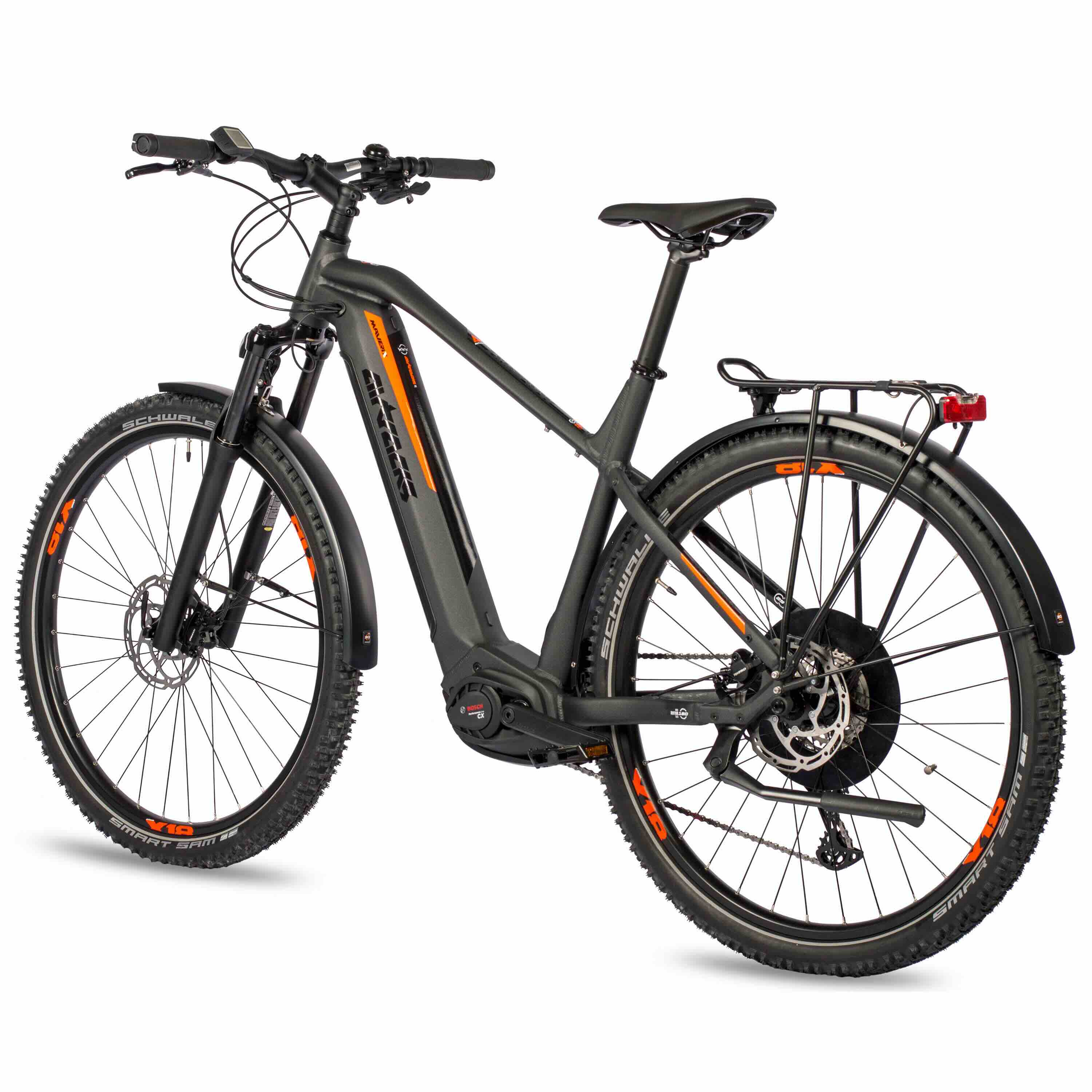

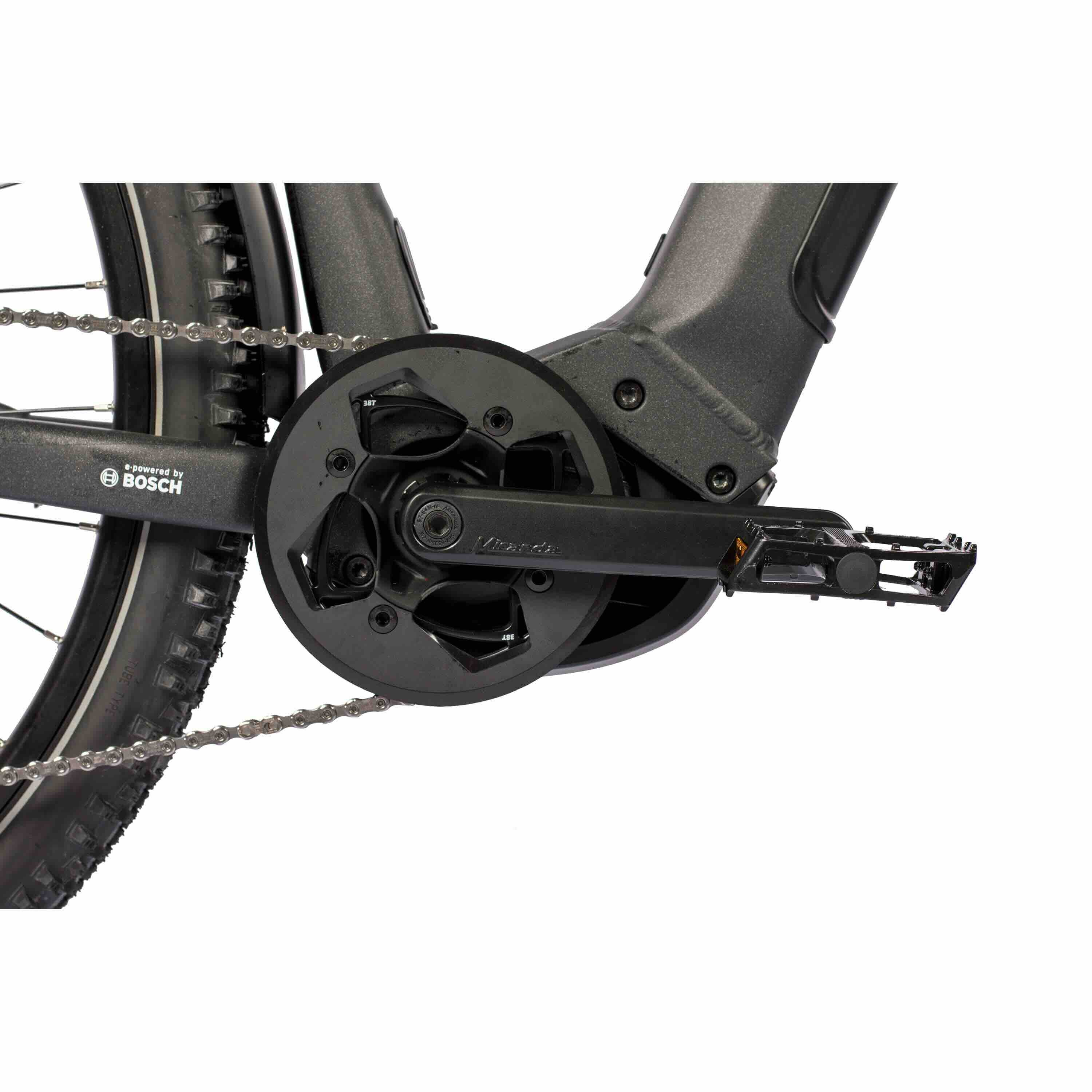

The new High-End 29-inch E-SUV MTB MAVERIX is an impressive e-MTB with all-round qualities for city, country, and forest, equipped with a variety of top-class components to offer an exceptional riding experience. The drive is powered by a strong BOSCH Performance Line CX Gen 4 mid-drive motor provided, which features a boost of 85 Nm. This motor delivers powerful assistance and allows you to easily tackle steep climbs and difficult terrain.

The e-bike’s battery is a Bosch PowerTube 625Wh frame-integrated battery with an impressive capacity of 625 Wh. With this battery, you can cover long distances up to 120 km without worrying about range. It provides enough energy for demanding tours and long days on the trail.

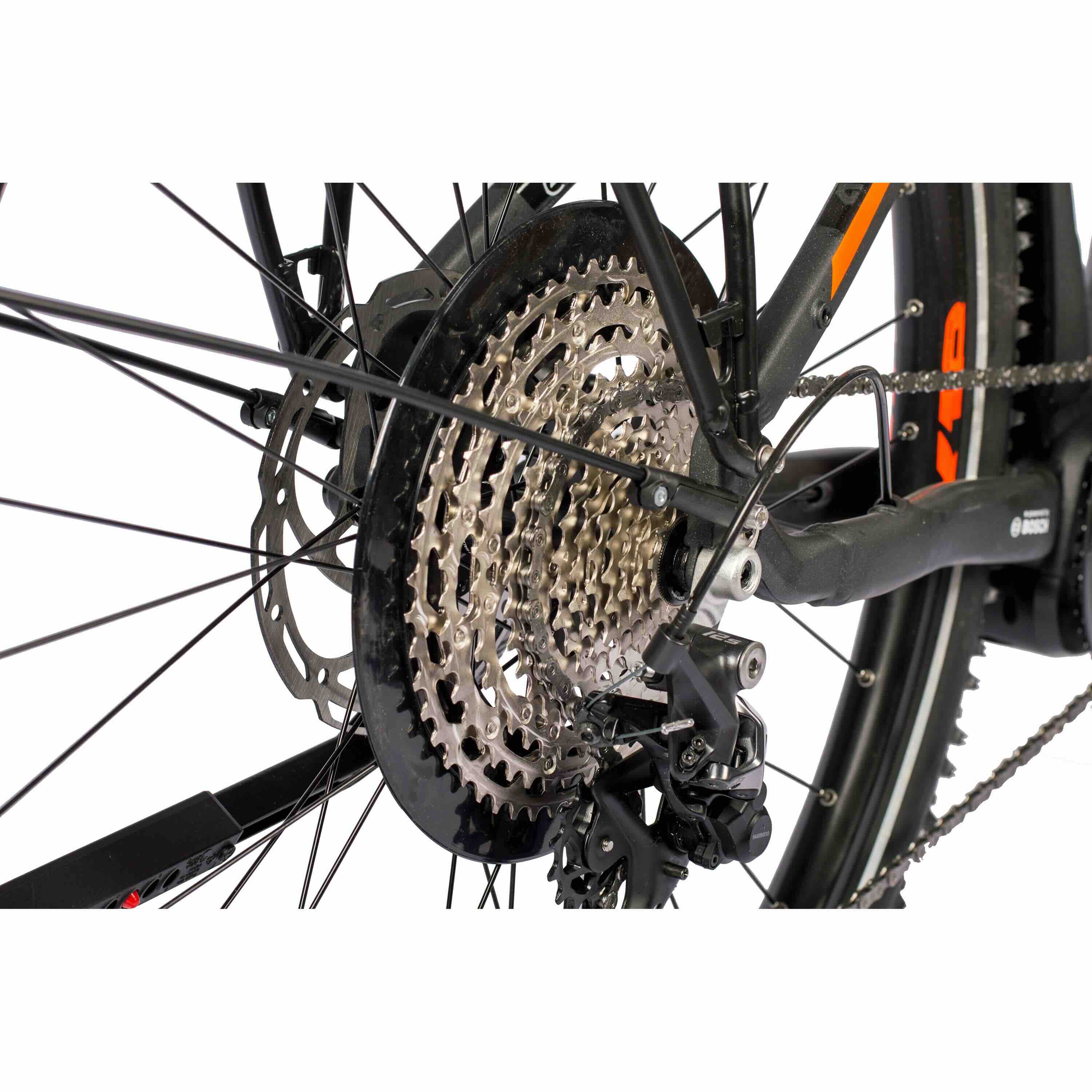

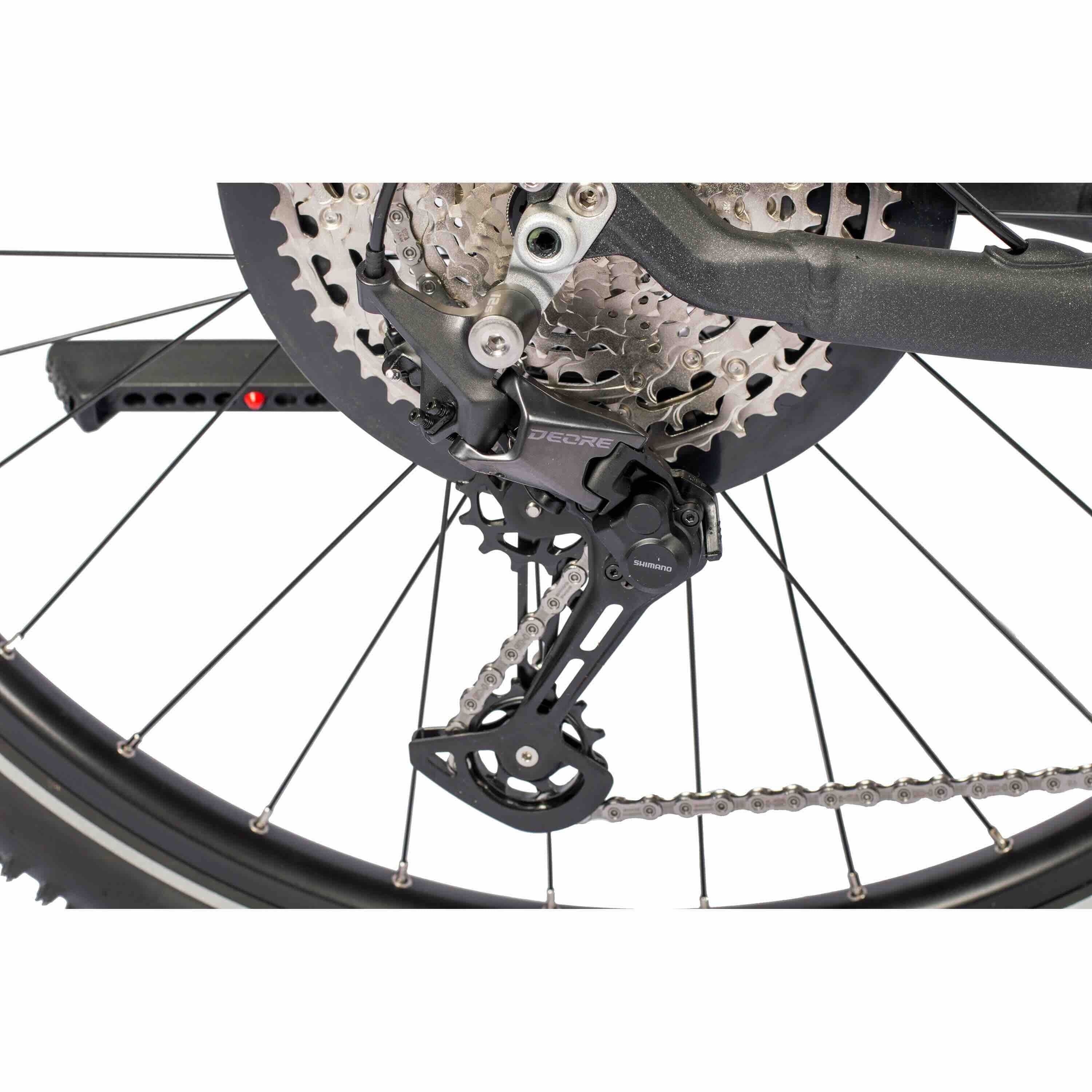

The bike’s shifting system is a SHIMANO shifting with a DEORE  RD-6100 derailleur . This precise shifting allows for quick and smooth gear changes and offers you a wide range of gears to easily handle different types of terrain. Whether steep climbs or fast descents, this shifting system has your back.

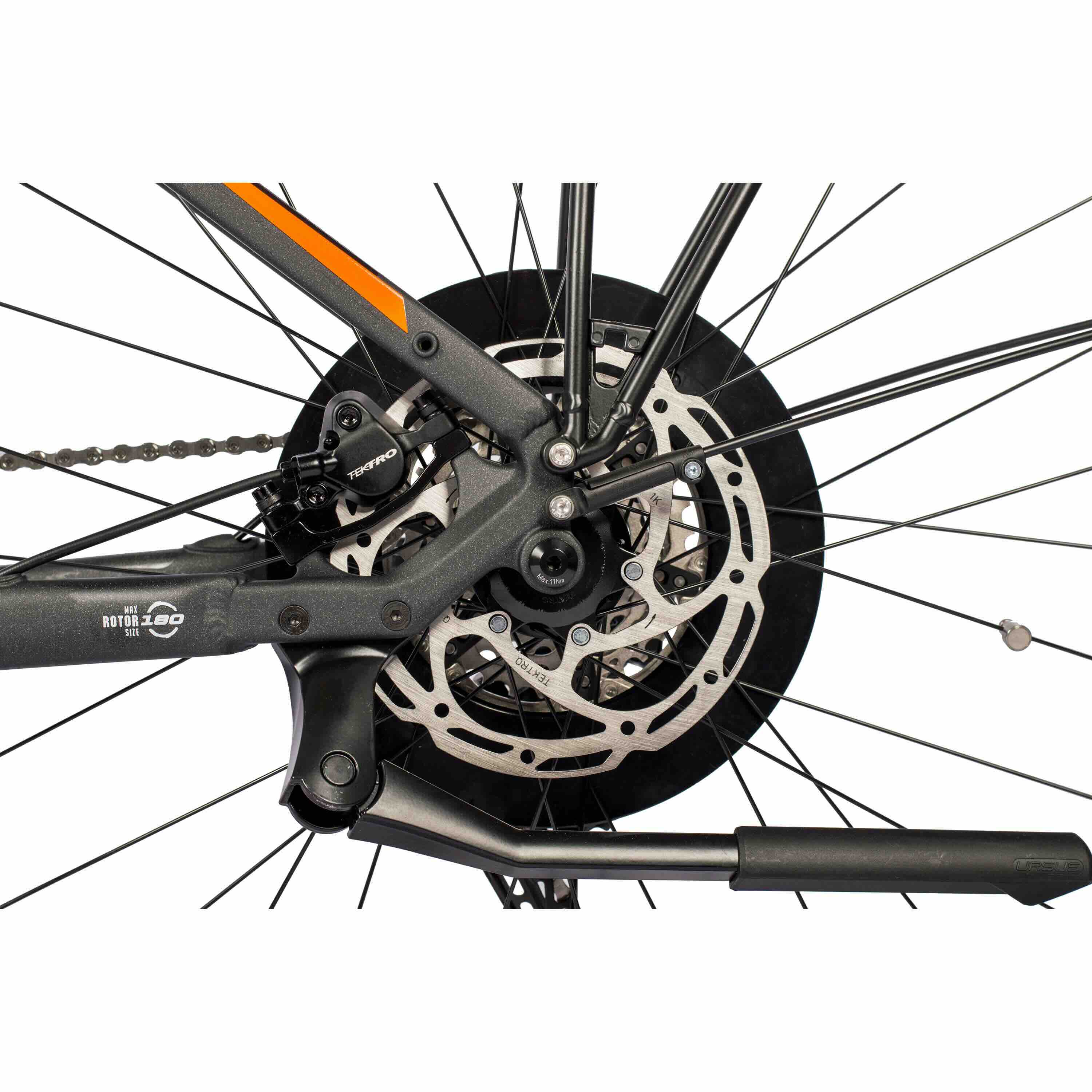

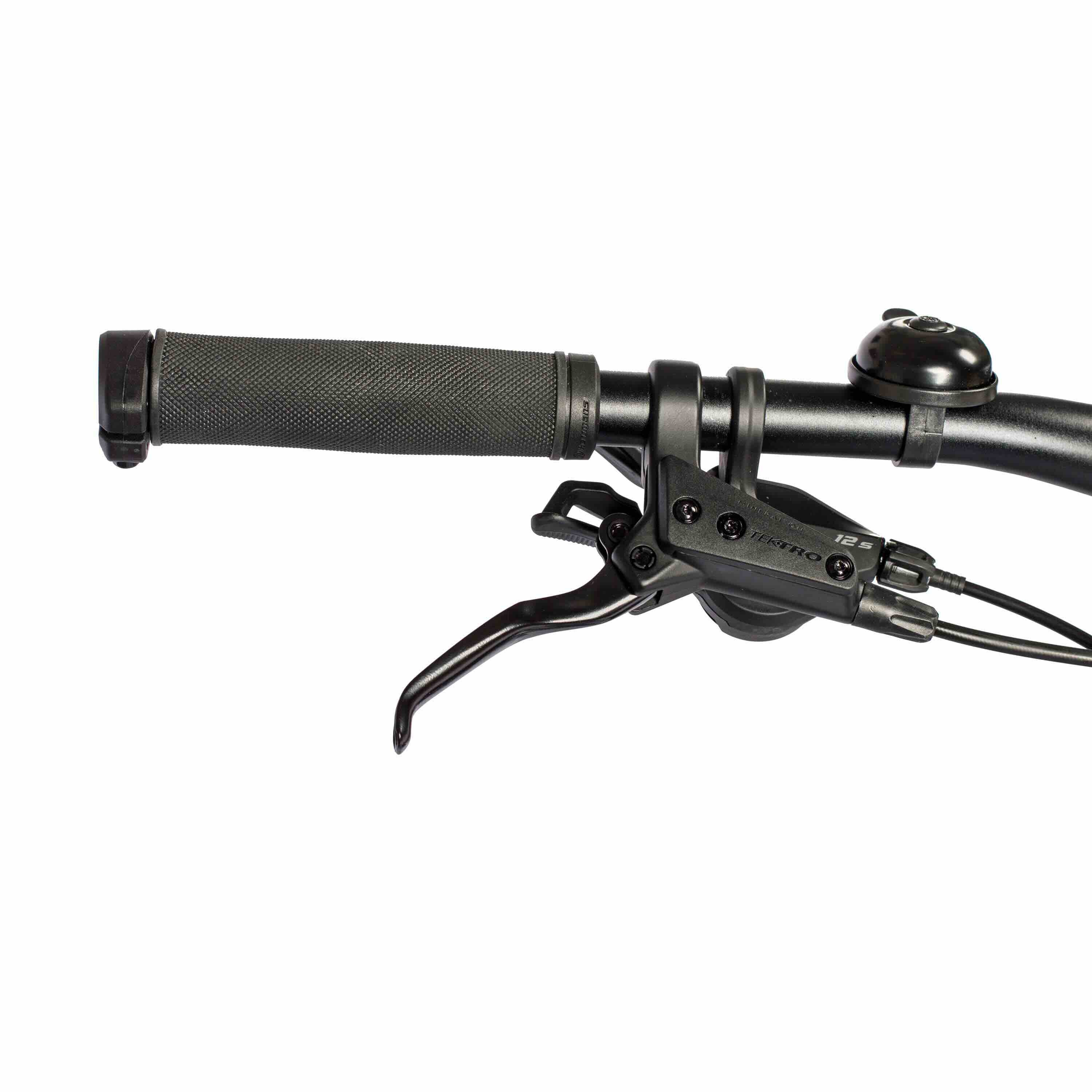

The e-bike’s brakes are hydraulic brakes from TEKTRO HD-M280 2-piston brake calipers with 180 mm front and 180 mm rear disc brake. These brakes provide powerful and reliable stopping power to bring the bike to a safe stop, even at high speeds and challenging conditions. You have full control over the bike and can brake safely at any time.

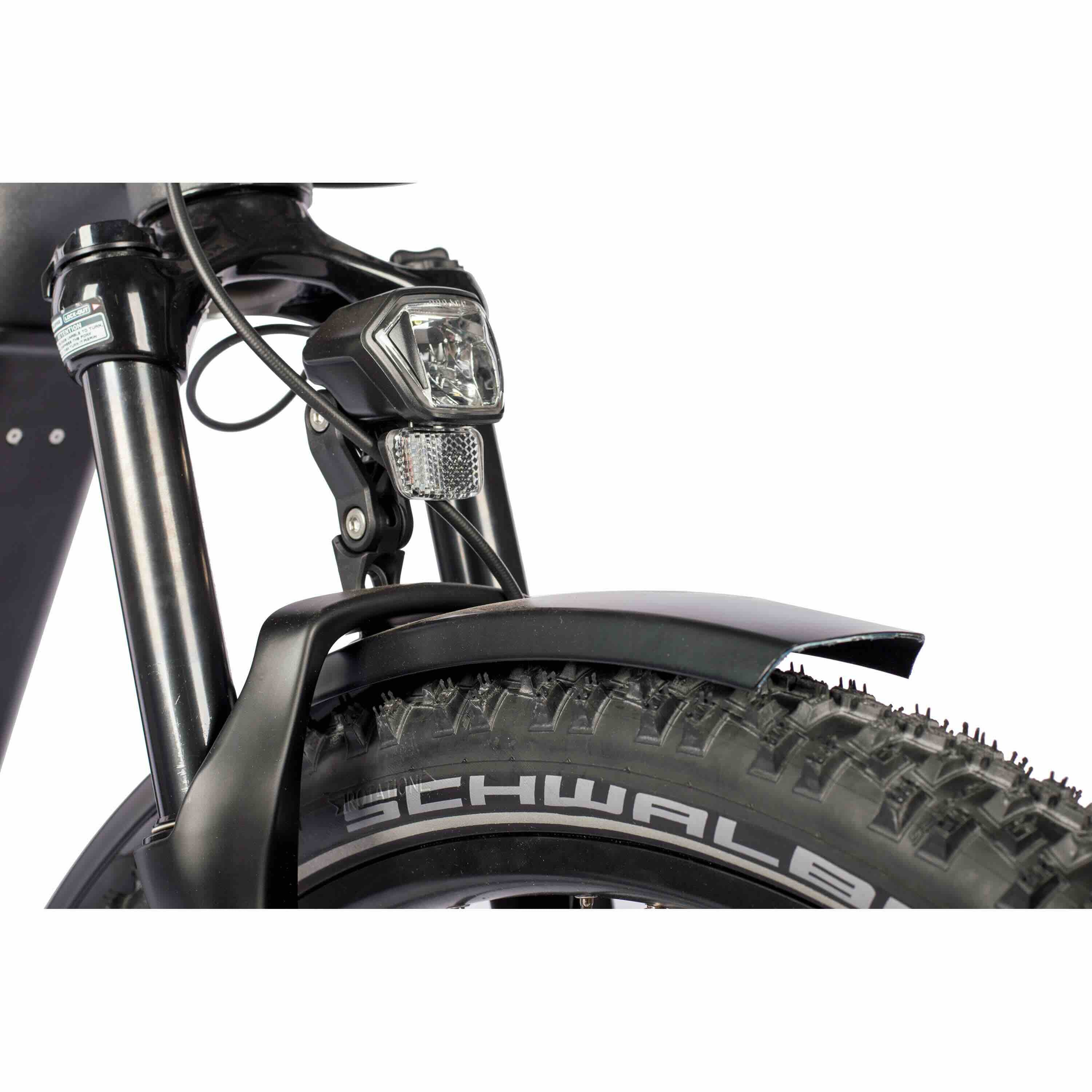

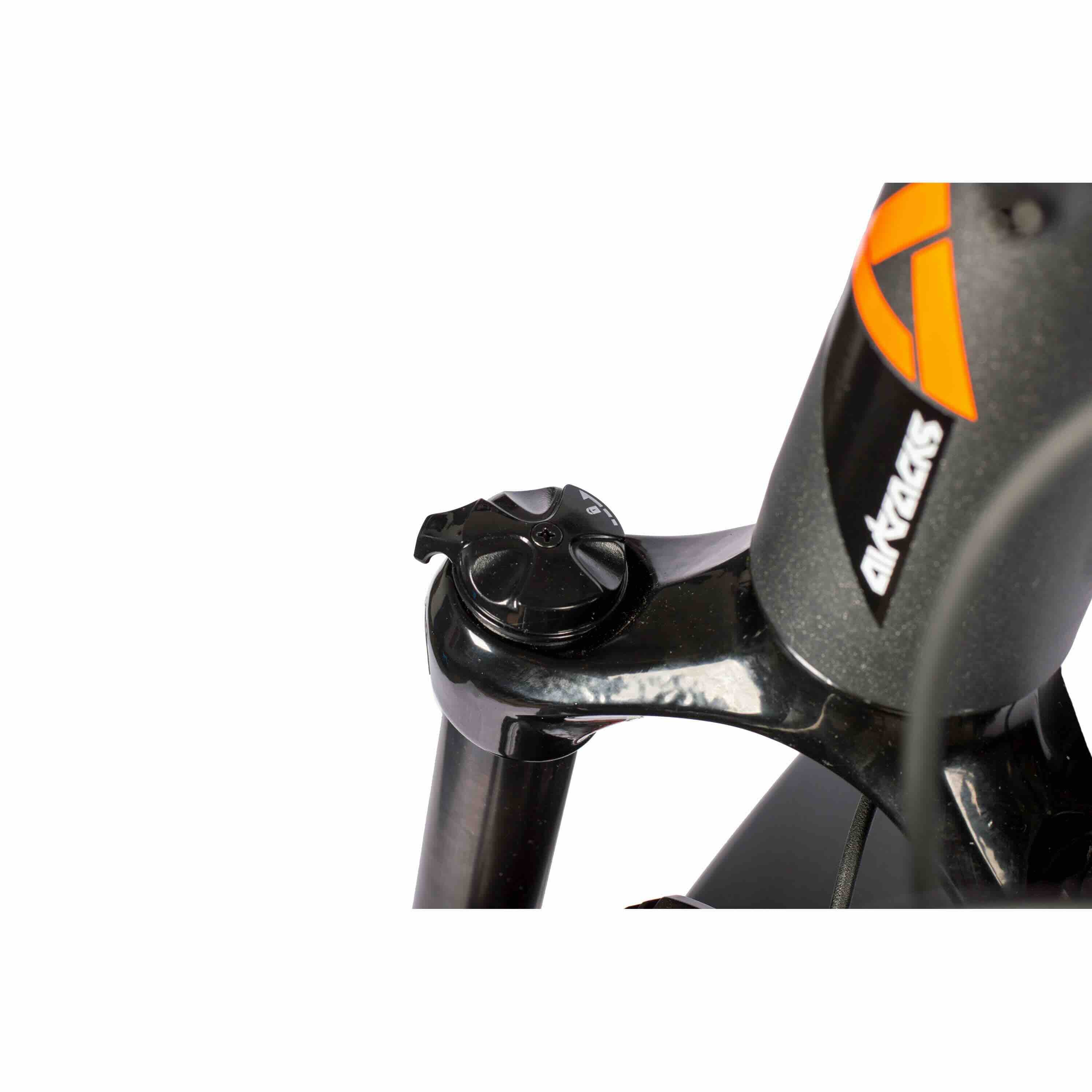

The bike’s suspension is supported by a RST BLAZE-ML-29 (QPQ STANCHIONS BLACK) 120 MM Suspension travel included. This fork withstands bumps and shocks on the trail, providing a comfortable ride. The 100 mm travel offers enough comfort and control to get the best out of your ride both uphill and downhill.

The high-end e-bike with 29-inch tires is the perfect choice for demanding mountain bike enthusiasts. With its powerful mid-drive motor, durable battery, precise shifting, powerful brakes, and effective suspension, it offers everything you need to master the terrain and enjoy an unforgettable riding experience.

All Airtracks e-bikes with Bosch or Shimano motors are equipped with removable and lockable batteries.
These offer more comfort and safety than fixed batteries, as they can be easily removed from the bike, charged separately, and protected against theft.

This bike is delivered 98% assembled. Only the handlebar and pedals need to be fixed. The final assembly ready for riding must be carried out by a qualified person.

MOTOR	BOSCH PERFORMANCE LINE CX GEN 4 36V, 250W (BOOST 85 NM)
BATERÍA	BOSCH POWERTUBE 500WH HORIZONTAL, 36V, 13,4 AH, INTEGRADA EN EL CUADRO, APROX. 3.0 KG
COMPUTADORA_DE_BORDO	PURION PERFORMANCE CX LINE
CARGADOR	BOSCH COMPACT CHARGER 2A, (100-240V), CABLE DE RED EU
MATERIAL_DEL_CUADRO	ALUMINIO, GUIADO INTERNO DE CABLES, 700C
HORQUILLA	RST BLAZE-ML-29 (QPQ STANCHIONS BLACK) 120 MM RECORRIDO
JUEGO_DE_DIRECCIÓN	AHEAD, SEMI-INTEGRADO 1 1/8"
BIELAS	MIRANDA PJ04IBT17000G0151500 - PSI 172,5Q:12 RF I
PEDALES	VP VPE-506 * NEGRO
CADENA	SHIMANO DEORE CN-M6100 HG 12 VELOCIDADES
CASETE	SHIMANO DEORE CS-M610012051, MICRO SPLINE, 12 VELOCIDADES
CAMBIO_TRASERO	SHIMANO DEORE RD-M6100 SGS, 12 VELOCIDADES
MANDO_DE_CAMBIOS	SHIMANO DEORE M-6100
MANETAS_DE_FRENO	TEKTRO HD-M280
FRENO_DELANTERO	TEKTRO HD-M280, FRENO HIDRÁULICO DE 2 PISTONES, DISCO 180 MM
FRENO_TRASERO	TEKTRO HD-M280, FRENO HIDRÁULICO DE 2 PISTONES, DISCO 180 MM
LLANTAS	X17 30 MM * 32H
BUJE_DELANTERO	SHIMANO AHBTX505B5 32H, CIERRE RÁPIDO, CENTERLOCK
BUJE_TRASERO	SHIMANO AFHTC500MSBB, CIERRE RÁPIDO, CENTERLOCK
NEUMÁTICOS	SCHWALBE SMART SAM 57-622 NEGRO/REFLEX
SILLÍN	SELLE ROYAL VIVO SPORT ERGO
PUÑOS	HERRMANS GRIT DD33BL/BR 140/140, CON ANILLOS DE BLOQUEO
POTENCIA	HL TDS-C507-8FOV EXT: 70/90/100
MANILLAR	HL MTB-AL-320BTFOV ANCHO: 740 MM
TIJA_DE_SILLÍN	PROMAX SP-2016 31.6X350
PESO	26,4 KG
PESO_TOTAL_ADMITIDO	130 KG

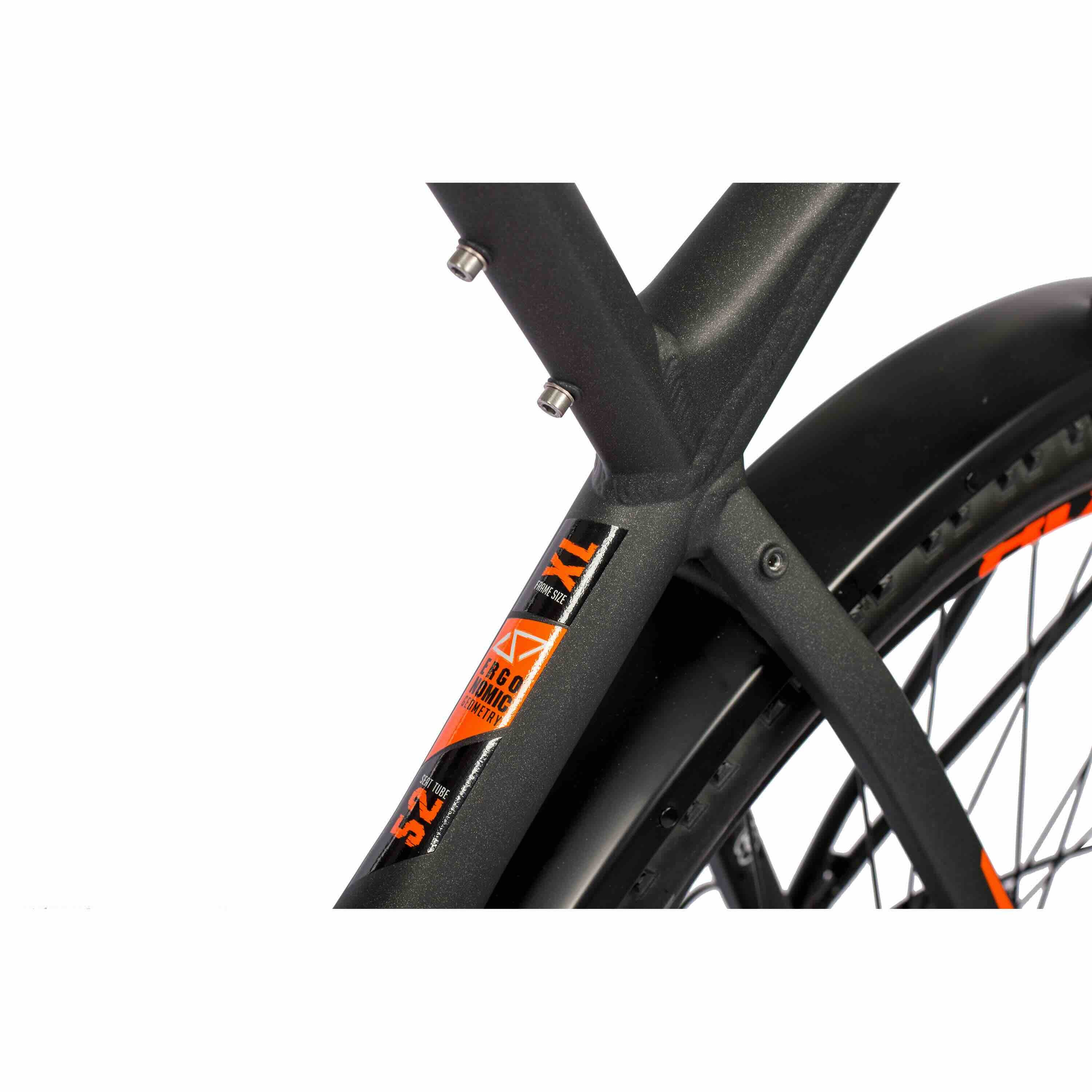

Frame size 44 cm	Height 155-165 cm
Frame size 47 cm	Height 165-175 cm
Frame size 52 cm	Height 175-185 cm
Frame size 56 cm	Height 185-195 cm

Motor	BOSCH PERFORMANCE LINE CX GEN 4 36V, 250W (BOOST 85 Nm)
Battery	Bosch PowerTube 500Wh Horizontal, 36V, 13,4 Ah, frame-integrated, approx. 3.0 kg
Onboard computer	PURION PERFORMANCE CX LINE
Charger	Bosch Compact Charger 2A, (100-240V), EU power cable
Frame material	Aluminum, internal cable routing, 700C
Fork	RST BLAZE-ML-29 (QPQ RUNG BLACK) 120 MM travel
Headset	Ahead, semi-integrated 1 1/8"
Crankset	MIRANDA PJ04IBT17000G0151500 - PSI 172.5Q:12 RF I
Pedals	VP VPE-506 * BLACK
Chain	SHIMANO DEORE CN-M6100 HG 12-speed
Cassette	SHIMANO DEORE CS-M610012051, Micro Spline, 12-speed
Derailleur	SHIMANO DEORE RD-M6100 SGS, 12-speed
Shift lever	SHIMANO DEORE M-6100

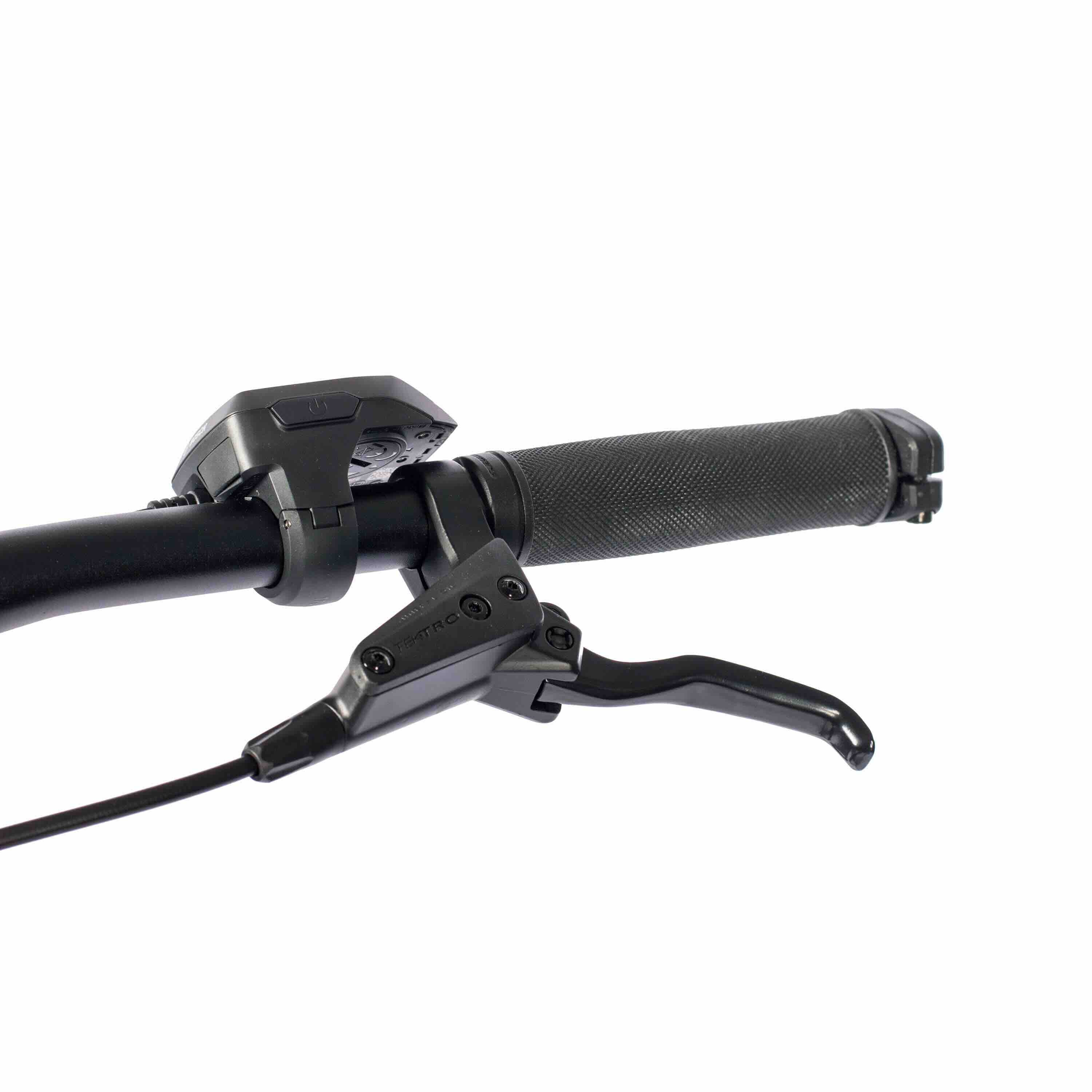

Brake lever	TEKTRO HD-M280
Front brake	TEKTRO HD-M280, hydraulic brakes with 42-piston caliper, 180 mm brake disc
Rear brake	TEKTRO HD-M280, hydraulic brakes with 42-piston caliper, 180 mm brake disc
Rims	X17 30 MM * 32H
Front hub	SHIMANO AHBTX505B5 32H, quick release, Centerlock
Rear hub	SHIMANO AFHTC500MSBB , Quick release, Centerlock
Tires	SCHWALBE SMART SAM 57-622 BLACK/REFLEX
Saddle	SELLE ROYAL VIVO SPORT ERGO
Handlebar grips	HERRMANS GRIT DD33BL/BR 140/140, with lock collars
Stem	HL TDS-C507-8FOV EXT: 70/90/100
Handlebar	HL MTB-AL-320BTFOV W: 740 MM
Seatpost	PROMAX SP-2016 31.6x350
Weight	26.4 KG
APPROVED WEIGHT	130 KG
