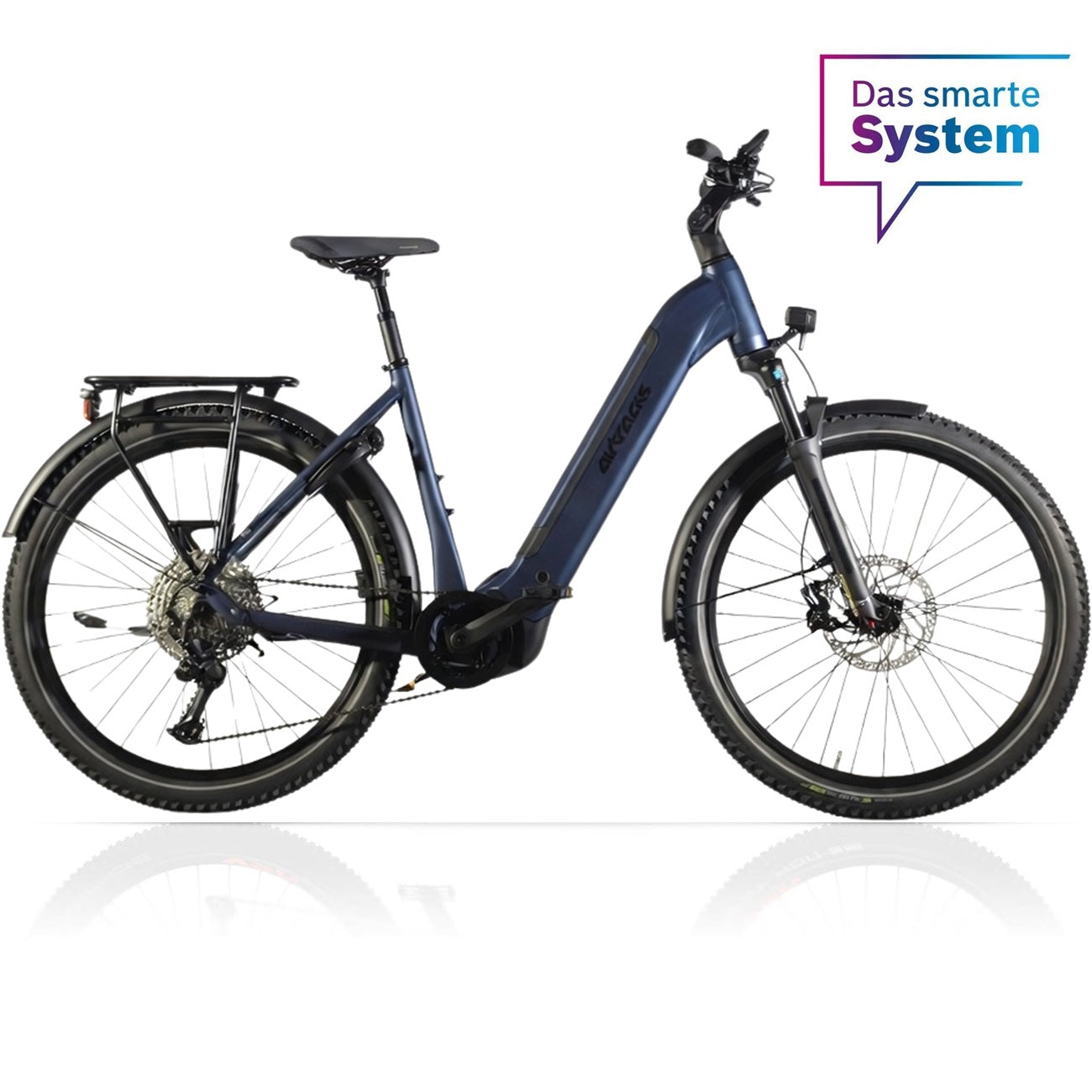

27.5" women's E-SUV MTB Wave LS TERRA CX1 BOSCH PERFORMANCE LINE PX Smart System POWERTUBE 800 Wh 12 x GANG SHIMANO XT RD-M8100 SGS Blue

27.5" women's E-SUV MTB Wave LS TERRA CX1 BOSCH PERFORMANCE LINE PX Smart System POWERTUBE 800 Wh 12 x GANG SHIMANO XT RD-M8100 SGS

---

The LS TERRA CX1 27.5" women's e-SUV MTB Wave combines modern e-bike technology with comfort and versatility. The stable wave-shaped aluminum frame allows for particularly easy mounting and dismounting and is ideal for everyday use, commuting, and longer tours on roads, bike paths, and gravel tracks.

Bosch Performance Line PX Smart System

The powerful Bosch Performance Line PX motor (Smart System) delivers up to 90 Nm of torque and provides powerful, natural support and operates particularly quietly – ideal for steep climbs and longer distances.

The integrated Bosch PowerTube battery with 800 Wh enables long ranges and makes the bike perfect for tours and daily use.

The Bosch Intuvia 100 display , in combination with the LED remote, allows for clear and convenient control of support levels and important riding data.

---

Versatile SUV e-bike

SUV e-bikes combine the advantages of city, trekking, and mountain bikes . They offer everyday comfort while being robust enough for gravel roads, forest trails, and longer tours .

Wider tires, stable frames and powerful engines make this category particularly versatile.

The LS TERRA CX1 was developed precisely for this purpose – comfortable in everyday use and reliable on longer journeys.

---

Gearbox, brakes & comfort

The Shimano Deore XT RD-M8100 12-speed drivetrain ensures precise gear changes and a wide gear range with a 10-51T cassette .

Reliable braking performance is ensured by Shimano MT-420 hydraulic disc brakes with large brake discs ( 203 mm front / 180 mm rear ).

The SR Suntour SF24-MOBIE34-D Boost AIR 2CR DS air suspension fork with 100 mm of travel ensures high riding comfort and good control on uneven roads.

The Conti E-Ruban Plus Reflex 27.5" tires offer good grip, high driving stability and additional visibility through reflective stripes.

---

Full equipment

Features include MIK HD luggage rack, Curana aluminum mudguards, Herrmans LED lighting, ABUS frame lock, side stand and bell .

With a weight of approximately 27.6 kg and a permissible total weight of 140 kg , the LS TERRA CX1 is a versatile e-SUV bike for everyday use and touring.

Available men's bicycle frame sizes (frame heights): M – 45 cm, L – 50 cm, XL

55 cm.

---

This bicycle is delivered 98% assembled. Only the handlebars and pedals need to be attached. Final assembly for safe riding should be carried out by a qualified person.

BOSCH_SYSTEM	BOSCH PX - POWERTUBE 800 WH - INTUVIA100 - LED REMOTE - 4A
MOTOR	BOSCH PERFORMANCE LINE CX GEN 5 SMART SYSTEM (BDU384Y), 25 KM/H, MAX. 100 NM, 700 WATT, 400% ASSISTANCE, 4 RIDING MODES + WALK ASSIST
BATTERY	BOSCH POWERTUBE SMART SYSTEM 800 WH / 22.2 AH, 36 V, LI-ION
DISPLAY	BOSCH INTUVIA 100 SMART SYSTEM, 2.5 INCH / 6.4 CM
LED_REMOTE	5 BUTTON SMART SYSTEM
CHARGER	BOSCH 4A 220–240V
FRAME	ALU NOVA WAVE SUV / 45 50 55 CM
FORK	SUNTOUR SF24-MOBIE34-D-Boost AIR 2CR DS 15AH2-110 27.5 T: 100 MM
STEM	SATORI PYTHON 31.8 EXT: 90 MM
HEADSET	TOKEN INTEGRATED CABLE ROUTING
KICKSTAND	URSUS REAR ADJUSTABLE / INVISIBLE CONNECT 44 MM
CRANK_ARM	FSA CK-220/IS/GEN4 / ISIS / 165 MM
CHAINRING	FSA SINGLE CHAINRING / 36T / GEN5
PEDALS	VP-836
CHAIN	KMC E12S SPORT
REAR_DERAILLEUR	SHIMANO DEORE XT RD-M8100 SGS 12-SPEED
SHIFT_LEVER	SHIMANO DEORE SL-M6100 RC
CASSETTE	SHIMANO DEORE CS-M6100 10-51T
RIMS	X20 DISC * INOX EYELETS
FRONT_HUB	SHIMANO HBTC50015BB 110MM 15MM 32H CENTERLOCK
REAR_HUB	SHIMANO AFHTC500MSBB 12 MM 32H CENTERLOCK
REAR_AXLE	SHINE WHEEL REAR AXLE QR-CX12-W0153
SPOKES	32/14G INOX SHA DAR
TIRES	CONTI E-RUBAN PLUS BLACK/REFLEX 58-584 27.5X2.30
TUBES	SCHWALBE SV19FB LIGHT 54/75-622
RIM_TAPE	HERRMANS HPA+ 30X584 / 27.5
HANDLEBAR	HB-RB11 FOV 680 MM VCT
GRIPS	VELO VP-ER07S - 138/98
ASSEMBLY	98% PRE-ASSEMBLED IN THE BOX
MANUAL	E-BIKE PEDELEC MANUAL DE/EN/FR/IT/NL/ES
SADDLE	SELLE ROYAL ESSENCA MODERATE
SEATPOST	HUMPERT ERGOTEC SP-10.0 31.6X350, 45/100
SEAT_CLAMP	PROMAX MX27 * 35 MM
FRONT_BRAKE	SHIMANO MT-420, HYDRAULIC DISC BRAKE 4-PISTON
REAR_BRAKE	SHIMANO MT-420, HYDRAULIC DISC BRAKE 4-PISTON
FRONT_ROTOR	SHIMANO ASMRT30L2 203 CENTERLOCK
REAR_ROTOR	SHIMANO ASMRT30L2 180 CENTERLOCK
BRAKE_LEVER	INCLUDED IN THE BRAKES
REAR_RACK	MIK HD. HLYJ-CR02-27.5
FENDERS	CURANA APOLLO FENDER 80 ALU
FRONT_LIGHT	HERRMANS NORDIC MR9, 60LX 190LM
REAR_LIGHT	HERRMANS BL-16 NORDIC TRACE PLUS
REFLECTOR	HERRMANS Z BR-12
LOCK	ABUS BLO BOS IT4 T82 W/ PRO AMPARO 4750X NR
BELL	YIWU ROCK
WEIGHT	27.6 KG
MAX_GROSS_WEIGHT	140 KG

Frame size 45 cm	Height 165-175 cm
Frame size 50 cm	Height 175-185 cm
Frame size 55 cm	Height 185-195 cm
